A Vector Is a Shadow

Key Takeaways

• An embedding vector is candidate evidence, not truth. It preserves some learned shape while discarding source, status, permission, and authority.
• The failure pattern is semantic over-trust: a result sounds related, then the product treats relatedness as correctness.
• Before shipping, name the embedded object, the metadata stored outside the vector, and the gate that stops stale or unauthorized evidence.

Read this beside why RAG pipelines fail in month three, Retrieval That Survives Contact, and the Embeddings, Honestly overview when you turn the chapter into a production retrieval review.

Opening Problem

A support-ticket search pilot looks impressive until the CTO asks why the system cannot tell the difference between an old draft policy and the approved one. The failure is not that embeddings are useless. The failure is that the team expected the embedding to carry information it was never designed to carry. This is the honest starting point for this chapter: What an embedding is without magic: a lossy numerical position, not the thing itself.

A production embedding system sits between human language and machine ranking. Humans ask questions with missing context, overloaded words, abbreviations, time references, permissions, and expectations about truth. The system converts some object into a vector and then searches for nearby vectors. That conversion is useful because it makes fuzzy language computable. It is dangerous because it quietly removes structure. A vector does not preserve the original document, the author's authority, the approval workflow, the user's permission boundary, or the business rule that says one source should override another. Those things have to be represented somewhere else in the system.

The recurring motif of this book is simple: a vector is a shadow, not the object. A shadow can tell you the rough shape of something. It cannot tell you everything the object is made of, when it was last changed, who owns it, whether it is safe, whether it is current, or whether it is legally binding. Good semantic systems are not built by denying that limitation. They are built by respecting it.

This chapter uses the chapter theme to make that limitation practical. We will look at what the embedding layer contributes, what it cannot contribute, which engineering controls must surround it, and how to recognize the failure pattern before users do. The aim is not to make you suspicious of embeddings. The aim is to make you accurate about them.

Plain-English Mental Model

Think of an embedding as a learned address. The model reads an object, such as a sentence, chunk, support ticket, product description, code function, image, or user profile, and places that object somewhere in a geometric map (see OpenAI Embeddings for how this works in practice). Objects that the model has learned to treat as related tend to land near one another. This makes a certain kind of search possible: instead of asking only for exact words, the system can ask for nearby meaning.

That is the power. The limitation follows immediately. An address is not the house. If two houses are near one another, they may share a neighborhood, but they do not become the same house. A policy draft and an approved policy may discuss the same subject and therefore land close in vector space. A sales proposal and a binding contract may use nearly identical language and therefore look similar. A support ticket saying "I cannot access my account" and a help article saying "reset your password" may be close enough to be useful. The geometry captures relatedness. It does not certify correctness.

In engineering terms, this means the vector layer should be treated as a candidate-generation layer. It proposes possible neighbors. It should not be treated as the final authority. The final system must decide which candidates are allowed, current, authoritative, safe, complete, and useful.

Technical Explanation

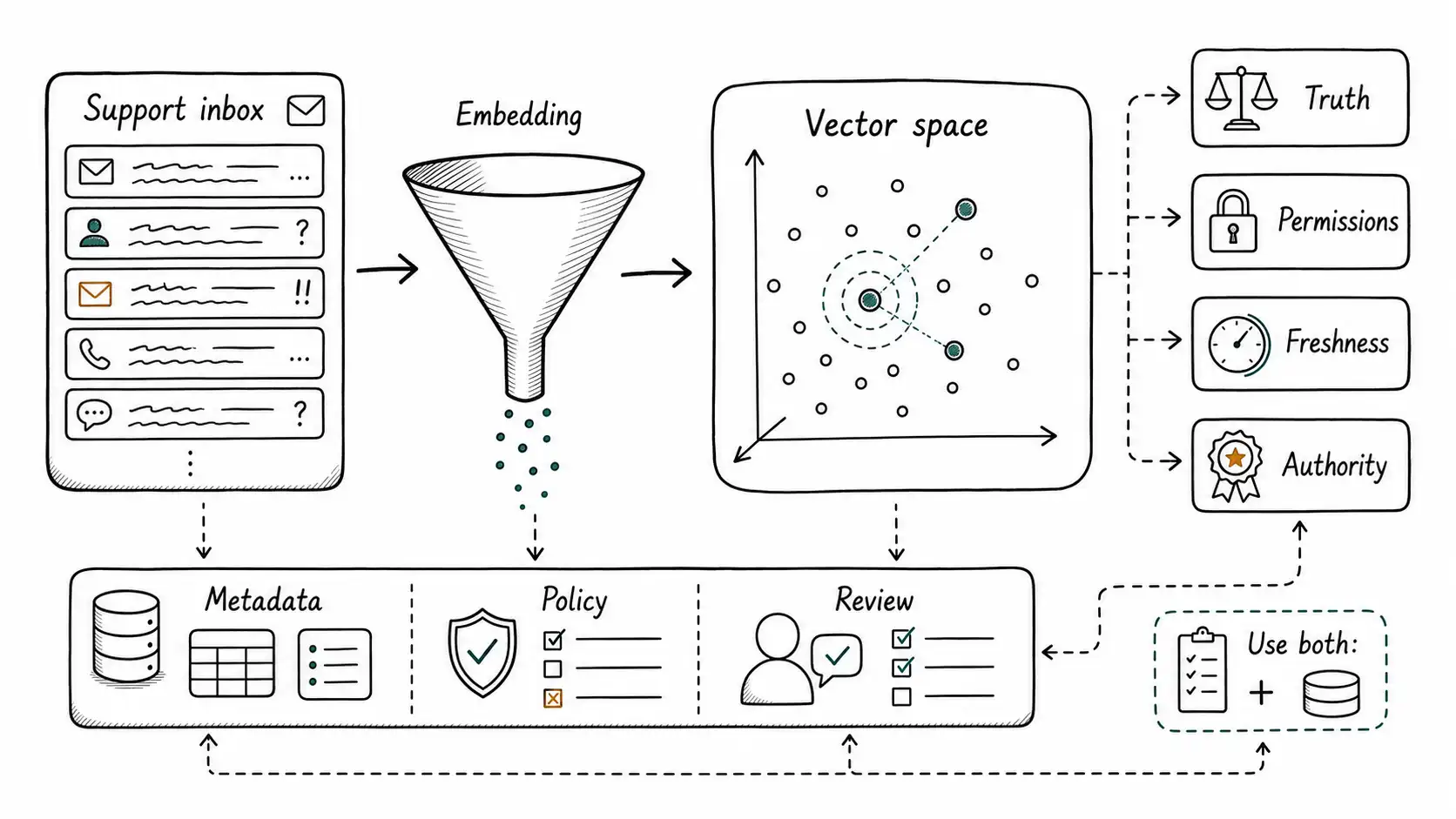

The core pipeline has four movements. First, an object is prepared. In text systems, preparation often includes cleaning, splitting, chunking, preserving structure, and attaching metadata. Second, an embedding model maps the prepared object into a dense vector (see Sentence Transformers for an open-source implementation of this step). Third, an index stores those vectors in a way that supports fast nearest-neighbor search (see Pinecone Semantic for how vector stores expose this to production systems). Fourth, a query is embedded and compared against the indexed vectors so the system can retrieve candidates.

Each movement introduces its own failure mode. If preparation is bad, the vector represents the wrong unit of meaning. If the embedding model is mismatched to the domain, the map itself may be wrong for your use case. If the index uses approximate search with poorly tuned recall, the right neighbor may not be found even when it exists. If the query is ambiguous, the nearest neighbors may answer the wrong intent. If ranking stops at cosine similarity, the system may surface the nearest text instead of the useful, authorized, or current one.

The most important discipline is to separate representation from decision-making. Embeddings represent. Retrieval proposes. Ranking decides. Policy constrains. Evaluation verifies. Monitoring watches. A system that collapses all of those into "vector search" will eventually fail in a way that looks surprising only because the architecture hid the distinction.

Table: What the Vector Layer Contributes and What the System Must Add

Concern	Vector layer can help	Vector layer cannot guarantee	System control required
Semantic similarity	Finds nearby meaning and paraphrases	Correctness, authority, freshness	Reranking, metadata, source policy
Fuzzy matching	Handles wording variation	Exact IDs, SKUs, names, negation	Keyword/sparse lane and exact fields
Candidate retrieval	Produces a useful top-k list	Final answer quality	Evaluation and answer verification
Clustering	Groups related objects	Business category truth	Human labels and taxonomy mapping
Recommendation	Finds similar users/items	Diversity, fairness, safety	Exploration, constraints, monitoring
RAG context	Supplies possible evidence	Faithfulness of generated answer	Citations, grounded generation, evals

Engineering Pattern

The practical pattern is to build a retrieval stack that keeps each responsibility explicit:

1. Prepare the object with structure preserved.
2. Embed the correct unit of meaning, not arbitrary blobs.
3. Store metadata beside the vector, not in a separate forgotten spreadsheet.
4. Retrieve more candidates than you plan to show.
5. Filter by tenant, permission, status, date, locale, and product before anything is exposed.
6. Combine dense vectors with sparse/keyword search when exact terms matter.
7. Rerank candidates using a stronger relevance model when quality matters.
8. Evaluate retrieval separately from answer generation.
9. Monitor drift, freshness, latency, cost, and failure cases after launch.

The pattern is intentionally boring. Production retrieval quality usually improves less from a heroic model choice than from disciplined object preparation, metadata, evaluation, hybrid search, and reranking.

Code / Config Example

# inspect a tiny embedding-like vector, without pretending it is knowledge
from math import sqrt

def norm(v):
 return sqrt(sum(x*x for x in v))

refund_request = [0.18, -0.44, 0.72, 0.09]
legal_policy = [-0.62, 0.11, 0.05, 0.78]

print("vector length:", len(refund_request))
print("magnitude:", round(norm(refund_request), 3))
# The vector is not the ticket. It is only a learned position.

The point of this example is not to prescribe a vendor or framework. The point is to expose the decision boundary. Wherever your production code hides this boundary, future debugging becomes forensic archaeology.

Failure Pattern

The most common failure in this chapter's territory is semantic over-trust. The system retrieves something that sounds right, and because it sounds right, the product treats it as right. This is especially dangerous in legal, healthcare, finance, HR, customer support, and internal knowledge-base systems where similar documents often coexist across versions, departments, jurisdictions, and approval states.

A good incident review does not stop at "the embedding returned the wrong result." It asks which missing control allowed the wrong result to become user-visible. Was the chunk boundary wrong? Was there no metadata filter? Did the index include drafts? Was there no freshness rule? Did the query need keyword matching for an exact identifier? Was the reranker absent? Did evaluation fail to include this class of query? The answer is rarely one thing. It is usually a chain of skipped controls.

Checklist

• Can we state exactly what object is being embedded?
• Do we know which facts are intentionally stored outside the vector?
• Are permissions, freshness, status, tenant, source, and version represented as metadata?
• Is vector similarity treated as candidate generation rather than final truth?
• Do exact identifiers have a keyword or structured-search path?
• Do we evaluate retrieval with realistic user queries?
• Do we monitor failures after launch instead of trusting the demo?

One-Sentence Takeaway

A vector is a shadow, not the object. The system must decide what the shadow is allowed to mean.

Deep Dive: Why the Shadow Metaphor Matters

The shadow metaphor is not poetic decoration. It is an engineering warning. A shadow preserves some shape while discarding most physical detail. It may show that two objects are roughly similar in outline, but it does not preserve texture, ownership, freshness, chemical composition, or legal status. Embeddings behave similarly. They preserve learned relational information useful for similarity search, but they discard most of the operational properties that determine whether a result should be trusted.

This matters because many teams implicitly treat embedding generation as if it were a knowledge-ingestion step. They say, "we embedded the documents, " as if the system now knows the documents. It does not. It has stored vector positions computed from them. The document text still lives somewhere else. The metadata still has to be captured. The permission model still has to be enforced. The date and status still matter. The vector can point toward likely relevant material; it cannot become the full institutional memory.

A useful way to design the first version of an embedding system is to write two columns on a whiteboard. In the left column, write the properties the vector might help with: topical similarity, paraphrase, fuzzy intent, nearest examples, duplicate-ish content, clustering. In the right column, write properties that must be represented outside the vector: tenant, permission, source, version, date, approval status, exact identifiers, source authority, retention policy, deletion state. If the right column is longer, that is normal. The right column is where production systems become trustworthy.

This is also why you should resist the phrase "vector database as memory" unless you define memory carefully. A vector database is a retrieval index. It can support memory-like behavior when paired with identity, chronology, summarization policy, access control, and evaluation. Alone, it is not memory. It is a map of shadows.

Practical Design Move

When building your first semantic search feature, start every record with three layers: the original object, the vector, and the control metadata. Do not store only text and vector. Store the identity of the source object, the version of the source object, the embedding model version, the chunking strategy version, and the permission scope. This looks excessive in a prototype. It is cheap insurance in production.

Field	Why it matters
source_id	Lets you trace the vector back to the original object.
source_version	Prevents stale chunks from masquerading as current truth.
embedding_model	Makes model migrations auditable.
chunk_strategy	Explains retrieval changes after chunking experiments.
acl_scope	Allows permission-aware retrieval.
status	Separates draft, approved, archived, deleted material.

A system without these fields can still demo well. It cannot answer basic production questions later: why did this answer appear, which source created it, is it still valid, and was this user allowed to see it?

Additional Production Notes for Chapter 1

In production, the chapter's principle should be converted into a named design review item. The team should not rely on tribal knowledge or on the memory of the engineer who built the first prototype. A named review item creates accountability. It also creates a place where research, product constraints, security requirements, and operational evidence can meet before launch.
